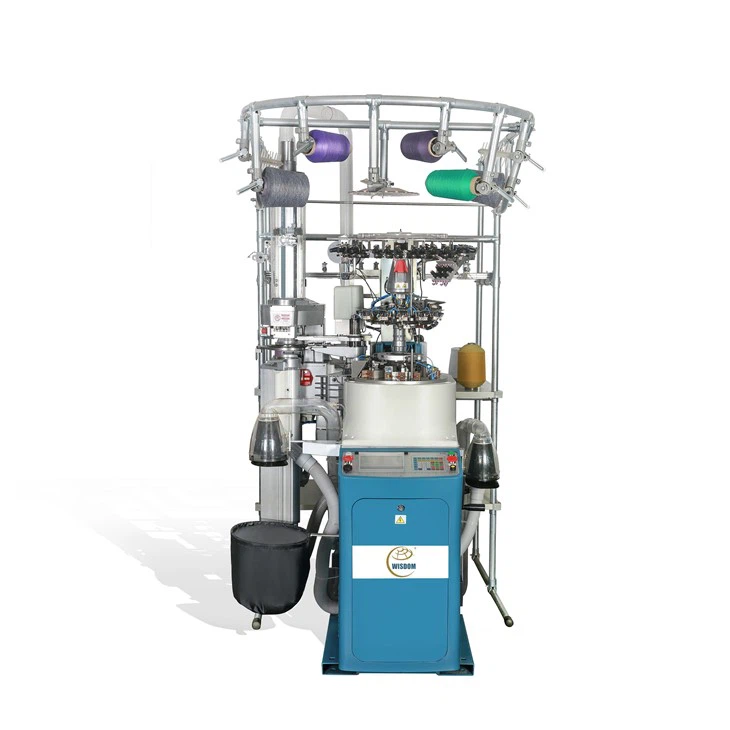

| FULL COMPUTERIZED SOCK MACHINE KNITTING -SEWING -TURNING ALL IN ONE MAKING PLAIN,SELECTED TERRY INVISIBLE SOCK | ||
| Model | WSD-TSAPT | |
| Cylinder Diameter | 3.75 inch | |
| Needle Number | 108-200N | |
| Max Speed | 330rpm/min | |
| Running Speed | 280-300rpm/min | |
| Function | 1: Making all kinds of plain ,terry ,selected terry and invisible socks | |
| 2: One main feeder(9fingers),6 jacqard feeder(17fingers) | ||
| 3: Double elastic system | ||
| 4： Knitting high heel,left and right foot.180°against sock mouth,two colors sock toe and heel | ||
| Main Features | All mechanical parts are installed in high precision CNC mechancal positioning mode and standardized assembly,which makes the machine working more stably and improve component interchangeability | |
| All electronic valves controlled fingers on main feeder and 17 fingers on 6 jacquard feeders,one loop can have 7 color. | ||
| 7 Sets of 16 flaps high speed actuators assure fine patterning | ||
| Double up and down pickers or fast alternation movements | ||
| Keyboard and touch screen operating platform,UPS backup system for power off protection and automatic error detection. | ||
| High speed,big memory CPU capacity on board for easily modify chain program and pattern | ||
| With sewing,turning function,knitting and sewing working together,promote the efficiency and production | ||
| Power Requirement | Drive Motor | 1.35KW |
| Fun Motor | 1..5KW*2 | |
| Control box | 0.8KW | |
| Voltage | 220V/380V/415V | |
| Floor Space | 170X130X250CM | |
| Net/Gross Weight | 350/380KG | |
| Packing Size(LxWxH) ) | 120X110X190CM | |
Socks Knitting Machine
1.One feeder into yarn.
2.Elastic shuttle(can buy two),knit different colors.
3.Six colors in one line, there are 13 colors in the socks pattern.
4.High heel, big heel, small heel, 180 degree against sock mouth, two colors for sock heels, socks toes, can knit 3D socks.
5.Taking the double shovel-needle technology, when knitting the heel and toe, the angle is adjusted by computer. in this way, can improve the efficiency, overcome the shortcoming of sidle shovel needle.
6.According to customer's needs, special kind of machines can be ordered.
one-stop
solution
professional
team
high
quality
Choose Us To Be Your Most Sock Machine Supplier
We are Zhejiang Wisdom Technology Co., Ltd., a professional manufacturer of sock machines, with advanced production equipment and a group of excellent technicians who develop high-end machines. It is a joint-stock enterprise integrating R&D, production, sales and project output. We currently have hundreds of employees, dozens of professional and technical personnel, more than 30 senior technicians, and an annual output of more than 10,000 computerized sock machines. It covers an area of 60 acres and a building area of more than 15,000 square meters.
