Yarn Feeding System: The yarn feeding system supplies yarn to the knitting needles evenly and continuously. It consists of yarn bobbins, yarn guides, and tension regulators. The tension regulator ensures that the yarn is fed at a constant tension, preventing issues like yarn breakage and uneven knitting. Some high-end machines can even handle multiple types of yarn simultaneously to create socks with complex color combinations and material blends.
Knitting Mechanism: This is the core part of the automatic sock machine. Driven by a motor, the knitting needles move up and down or rotate to interlock the yarn into a fabric structure. The machine can complete a series of operations such as loop formation, yarn crossing, and stitch tightening in a short period, gradually forming the shape of the sock from the toe to the cuff.

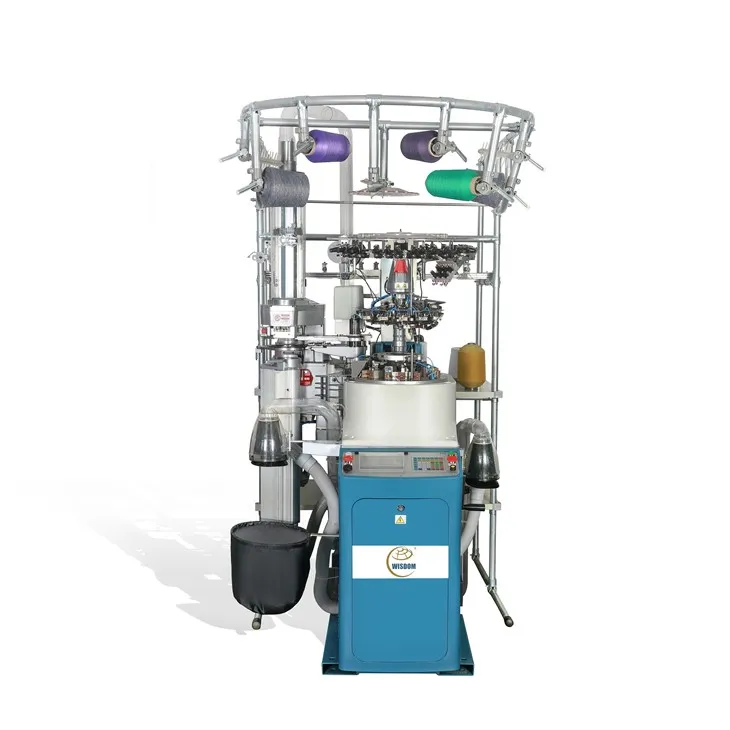

| FULL COMPUTERIZED SOCK MACHINE KNITTING -SEWING -TURNING ALL IN ONE MAKING PLAIN,SELECTED TERRY INVISIBLE SOCK | ||
| Model | WSD-TSAPT | |
| Cylinder Diameter | 3.75 inch | |
| Needle Number | 108-200N | |
| Max Speed | 330rpm/min | |
| Running Speed | 280-300rpm/min | |
| Function | 1: Making all kinds of plain ,terry ,selected terry and invisible socks | |
| 2: One main feeder(9fingers),6 jacqard feeder(17fingers) | ||
| 3: Double elastic system | ||
| 4： Knitting high heel,left and right foot.180°against sock mouth,two colors sock toe and heel | ||
| Main Features | All mechanical parts are installed in high precision CNC mechancal positioning mode and standardized assembly,which makes the machine working more stably and improve component interchangeability | |
| All electronic valves controlled fingers on main feeder and 17 fingers on 6 jacquard feeders,one loop can have 7 color. | ||
| 7 Sets of 16 flaps high speed actuators assure fine patterning | ||
| Double up and down pickers or fast alternation movements | ||
| Keyboard and touch screen operating platform,UPS backup system for power off protection and automatic error detection. | ||
| High speed,big memory CPU capacity on board for easily modify chain program and pattern | ||
| With sewing,turning function,knitting and sewing working together,promote the efficiency and production | ||
| Power Requirement | Drive Motor | |
| Fun Motor | ||
| Control box | ||
| Voltage | 220V/380V/415V | |
| Floor Space | 170X130X250CM | |
| Net/Gross Weight | 350/380KG | |
| Packing Size(LxWxH) ) | 120X110X190CM | |
Socks Knitting Machine
1.One feeder into yarn.
2.High heel, big heel, small heel, 180 degree against sock mouth, two colors for sock heels, socks toes, can knit 3D socks.
3.Taking the double shovel-needle technology, when knitting the heel and toe, the angle is adjusted by computer. in this way, can improve the efficiency, overcome the shortcoming of sidle shovel needle.
4.According to customer's needs, special kind of machines can be ordered.
one-stop solution
professional team
high quality
Choose Us To Be Your Most Professional Sock Machine Supplier
We are Zhejiang Wisdom Technology Co., Ltd., a professional manufacturer of sock machines, with advanced production equipment and a group of excellent technicians who develop high-end machines. It is a joint-stock enterprise integrating R&D, production, sales and project output. We currently have hundreds of employees, dozens of professional and technical personnel, more than 30 senior technicians, and an annual output of more than 10,000 computerized sock machines. It covers an area of 60 acres and a building area of more than 15,000 square meters.
01
High Quality
02
Advanced Equipment
03
Professional Team
04
Custom Service
FAQ:
What are the common problems and solutions in the operation of an automatic sock machine?
There are many problems that may occur during the operation of the automatic sock machine. The following is an introduction from the three aspects of mechanics, process, and electrical control:
Mechanical related problems
Yarn breakage: The reasons include excessive yarn tension caused by incorrect regulator settings or blocked yarn feeding paths, damaged or poor quality yarns and bobbins, and worn needles and yarn guide parts hooking the yarn. The solution is to adjust the tension regulator with a tension meter, check and replace the problematic yarns and bobbins and select high-quality yarns, and replace bent and blunt needles and worn yarn guide parts.
Uneven stitching: caused by inconsistent yarn feeding due to bloked or uneven tension of the yarn feeder, bent and misaligned needles or faulty needle selection mechanisms, and excessive vibration caused by unbalanced machines and loose parts. The solution is to clean the yarn feeder, balance the tension and adjust the yarn feeding, check, correct and replace the needles and calibrate the needle selection, and properly balance and install the machine and tighten loose parts.
Process related problems: Sock shape defects: caused by incorrect programming of the forming pattern, wear of forming mechanism parts, and inconsistent yarn shrinkage. The solution is to verify and adjust the pattern programming, replace worn molding parts and lubricate, test the yarn shrinkage and select yarn with consistent shrinkage.
Electrical control related issues: Electrical and control system failures: caused by power surges, electrical interference, software failures due to non-updates or compatibility issues, and sensor failures. The solution is to install surge protectors and filters, update software, restart or reinstall if failure occurs, and check, calibrate and replace faulty sensors.
