Full Compputerized Select Terry Sock Making Machine

Product Introduction:

A Full Computerized Select Terry Sock Making Machine is an advanced device in the sock - making industry. It is designed to produce high - quality terry socks with precision and efficiency. Controlled by a computer system, it allows for precise selection of terry patterns and stitches, enabling the creation of various designs and textures. This machine can handle different types of yarns, ensuring soft and comfortable terry surfaces. With its automated functions, it significantly increases production speed and reduces labor costs, while maintaining consistent quality. It is an essential tool for sock manufacturers looking to produce terry socks with excellent craftsmanship and in large quantities.

Send Inquiry

Description

Technical Parameters

The socks have a tight and firm structure: the upper and lower needle cylinders are knitted at the same time, making the coil structure of the socks tighter and more uniform, enhancing the firmness of the socks, reducing the risk of unthreading and holes, and significantly improving the wear resistance of the socks , can withstand the friction and pulling during daily wear and exercise.

Easy operation and maintenance
Intelligent operation: Fully computer program controlled, which can be switched between Chinese and English, convenient and intuitive parameter setting and program input and output, such as knitting pattern, stitch, sock size, etc. The operator only needs to simply press the screen Automatic weaving can be realized by operating and programming.

Low maintenance cost: The machine structure is relatively simple. For example, the use of pneumatic control structure makes the overall mechanical structure simple, the movement is light and flexible, and the selection and replacement of parts are relatively convenient, reducing the difficulty and cost of maintenance. At the same time, some machines are also equipped with automatic lubrication devices and fault alarm systems, such as automatic oil feeder systems and complete alarm systems, which can detect and solve problems in time, reducing downtime and maintenance costs caused by faults.

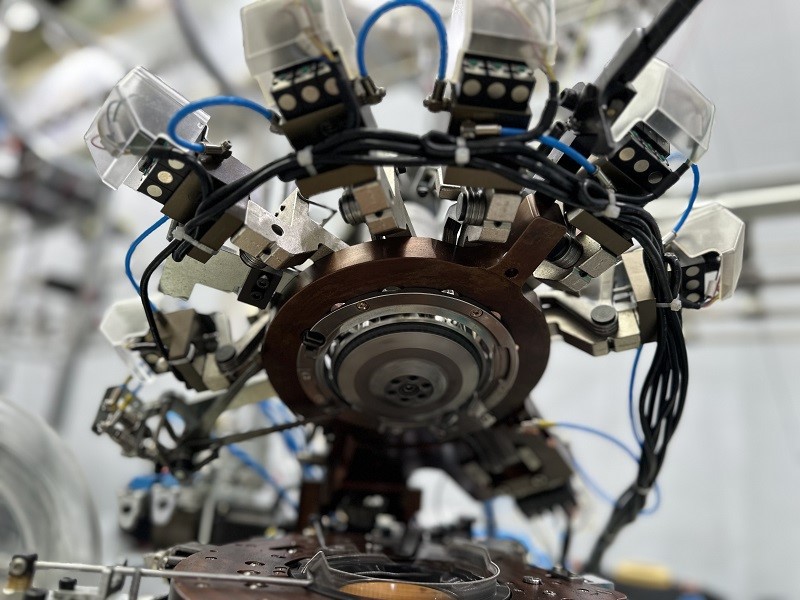

Socks Knitting Machine Structure Details

Hot Tags: full compputerized select terry sock making machine, China, manufacturers, suppliers, factory, customized, price, high quality

Main Specification and Functions

Model	WSD-8FPT
Cylinder Diameter	3.75inch
Needle Number	84-200N
Max Speed	350rpm/min
Running Speed	280-300rpm/min
Function	1: Making selected sock machine ,common used for high quality sports sock
	2: One main feeder(9fingers),6 jacqard feeder(17fingers)
	3: Double elastic system
	4： Knitting high heel,left and right foot.180°against sock mouth,two colors sock toe and heel.
Main Features	All mechanical parts are installed in high precision CNC mechancal positioning mode and standardized assembly,which makes the machine working more stably and improve component interchangeability
	Keyboard and touch screen operating platform,UPS backup system for power off protection and automatic error detection.
	High speed,big memory CPU capacity on board for easily modify chain program and pattern
Power Requirement	Drive Motor	1.35KW
	Fun Motor	1.1KW
	Control box	0.8KW
Voltage	220V/380V/415V
Floor Space	160X120X250CM
Net/Gross Weight	320/380KG
Packing Size(LxWxH)	110X75X175CM
