Key Components and Their Functions
Knitting Head
Needle System: The knitting head houses a set of precisely engineered needles, often made of high - quality steel. These needles are responsible for forming the stitches that make up the sock fabric. Different types of needles, such as latch needles, are used depending on the machine's design and the type of socks being produced. The needles move in a coordinated manner, controlled by cam systems, to create various stitch patterns.
Yarn Feeding Mechanism: Multiple yarn feeders are integrated into the knitting head. They ensure a continuous and consistent supply of yarn to the needles. Yarn tensioners are an essential part of this mechanism, maintaining the appropriate tension on the yarn. This is crucial as inconsistent tension can lead to uneven stitches, fabric defects, and even yarn breakage.
| Main Specification and Functions | ||

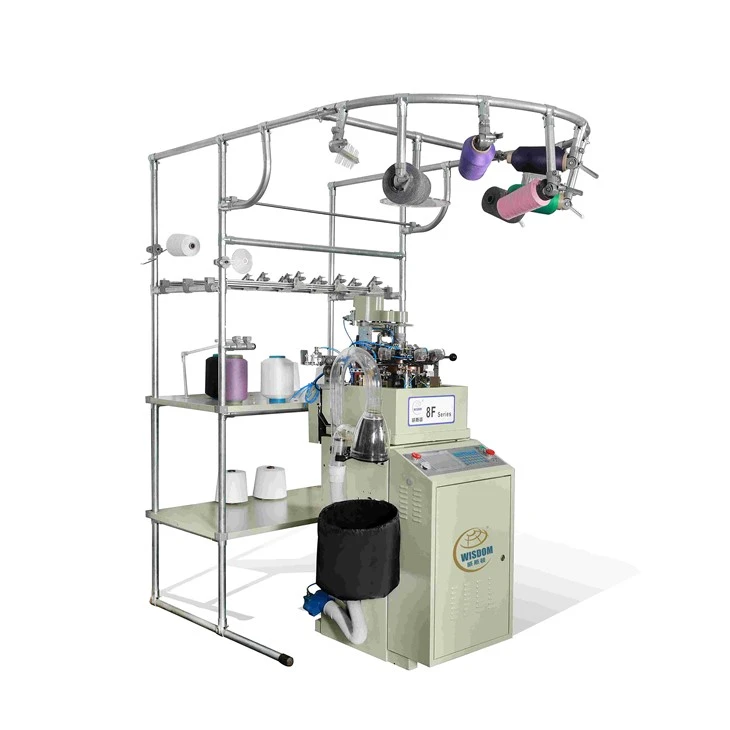

| Model | WSD-8FPT | |
| Cylinder Diameter | 3.75inch | |
| Needle Number | 84-200N | |
| Max Speed | 350rpm/min | |
| Running Speed | 280-300rpm/min | |
| Function | 1: Making selected sock machine ,common used for high quality sports sock | |
| 2: One main feeder(9fingers),6 jacqard feeder(17fingers) | ||
| 3: Double elastic system | ||
| 4： Knitting high heel,left and right foot.180°against sock mouth,two colors sock toe and heel. | ||
| Main Features | All mechanical parts are installed in high precision CNC mechancal positioning mode and standardized assembly,which makes the machine working more stably and improve component interchangeability | |
| Keyboard and touch screen operating platform,UPS backup system for power off protection and automatic error detection. | ||
| High speed,big memory CPU capacity on board for easily modify chain program and pattern | ||
| Power Requirement | Drive Motor | 1.35KW |
| Fun Motor | 1.1KW | |
| Control box | 0.8KW | |
| Voltage | 220V/380V/415V | |
| Floor Space | 160X120X250CM | |
| Net/Gross Weight | 320/380KG | |
| Packing Size(LxWxH) | 110X75X175CM | |
Professional Sock Knitting Machines Have Many Significant Advantages:
High efficiency and high yield: It can run at high speed, with large output and adjustable speed to take into account both output and quality.
Excellent quality: Accurately control each link to ensure the quality of socks, accurate patterns and uniform fabrics.
Type adaptation: Circular machines are suitable for daily mass production of socks, and flat machines meet high-end and special needs.
Intelligent and easy control: PLC precise programming, HMI is easy to operate, monitor and adjust.
one-stop solution
professional team
high quality
FAQ:
How to choose a professional sock knitting machine that suits you?
Technical parameters
Number of needles and needle gauge: More needles will result in higher socks fineness and quality, but the price is high and the production speed may be slow; the needle gauge determines the density of the socks and needs to be selected according to product requirements. For example, for the production of children's socks or thin socks, machines with more needles and smaller needle gauges can be selected.
Weaving speed: Fast speed can increase output, but the stability of the machine and the quality of weaving must also be considered. Machines that can maintain high-quality weaving at high speeds are better.
Number of yarn paths: More yarn paths can use yarns of multiple colors or materials at the same time, which is convenient for weaving socks with complex patterns and structures.
Performance characteristics
Automation degree: Machines with high automation can reduce manual operation, improve production efficiency and quality stability.
Easy to operate: The operation interface is friendly, simple and easy to understand, which is convenient for workers to operate and learn, and can reduce training costs and operating error rates.
Stability and reliability: The machine has a solid structure and good parts quality, which can reduce the occurrence of failures, ensure production continuity, and reduce maintenance costs and downtime.
