The Wisdom Multi-Function Integrated Sock Knitting Machine is a high-efficiency, all-in-one textile solution designed for modern sock manufacturing. Equipped with an intelligent numerical control system, it delivers intuitive operation and ultra-stable performance, ensuring consistent, high-quality sock production with minimal labor input.
This machine seamlessly integrates knitting, stitch-by-stitch linking, and turning-out functions in one unit, eliminating extra processing steps and drastically cutting production costs. It supports a full range of sock specifications and styles, including fashion socks, men's and women's cotton socks, sports socks, terry socks, invisible socks, and stockings, making it a versatile "one machine for multiple uses" solution that adapts perfectly to dynamic market demands.
With high production capacity, low energy consumption, and a perfect global after-sales service system, the Wisdom Multi-Function Integrated Sock Knitting Machine is the trusted choice for textile manufacturers worldwide, helping you boost production efficiency, improve yield rates, and grow your business sustainably.
| Multi-Function Integrated Sock Knitting Machine | ||
| Model | WSD-TSAPT | |
| Cylinder Diameter | 3.75 inch | |
| Needle Number | 108-200N | |
| Max Speed | 330rpm/min | |
| Running Speed | 280-300rpm/min | |
| Function | 1: Making all kinds of plain ,terry ,selected terry and invisible socks | |
| 2: One main feeder(9fingers),6 jacqard feeder(17fingers) | ||
| 3: Double elastic system | ||
| 4： Knitting high heel,left and right foot.180°against sock mouth,two colors sock toe and heel | ||
| Main Features | All mechanical parts are installed in high precision CNC mechancal positioning mode and standardized assembly,which makes the machine working more stably and improve component interchangeability | |
| All electronic valves controlled fingers on main feeder and 17 fingers on 6 jacquard feeders,one loop can have 7 color. | ||
| 7 Sets of 16 flaps high speed actuators assure fine patterning | ||
| Double up and down pickers or fast alternation movements | ||

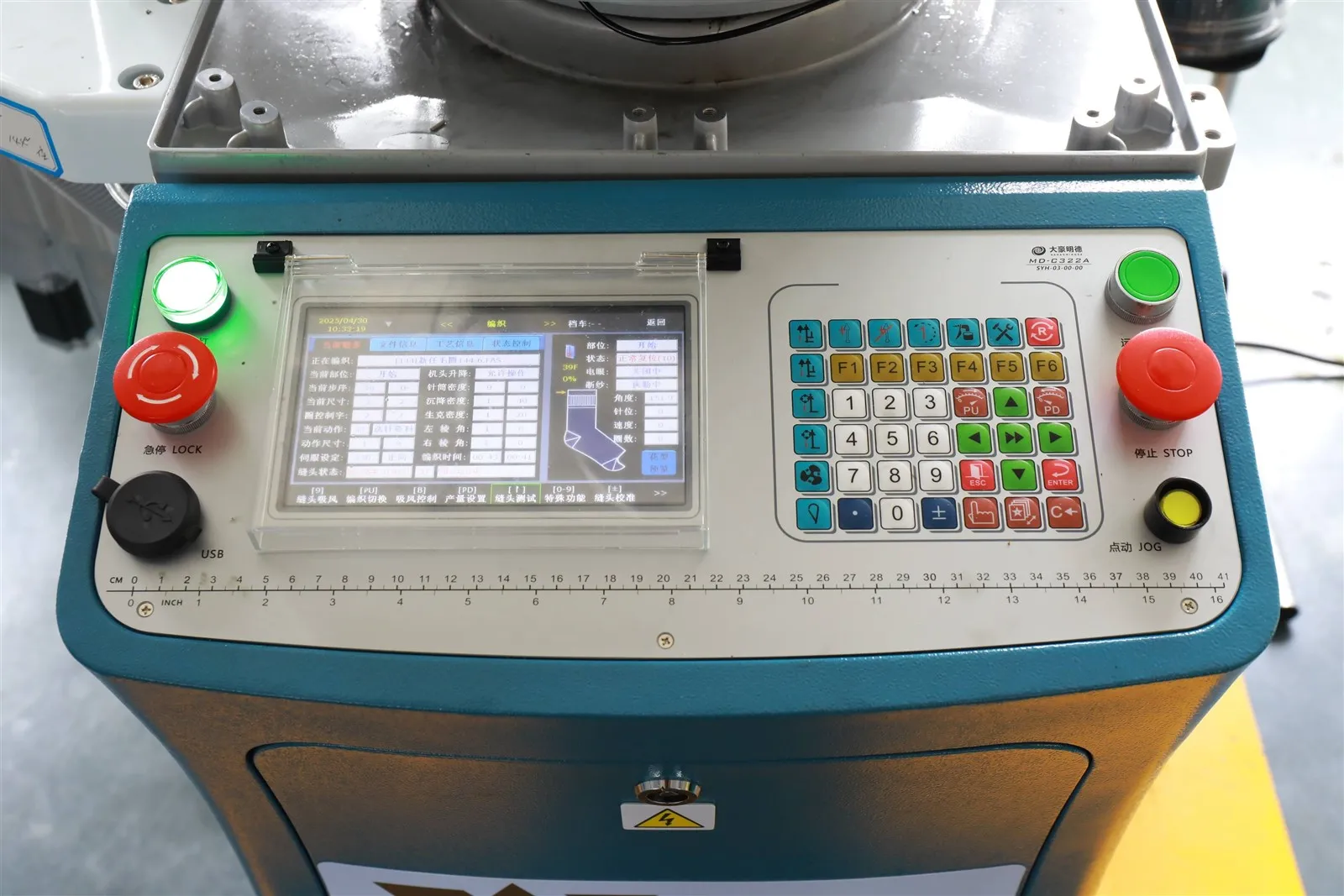

| Keyboard and touch screen operating platform,UPS backup system for power off protection and automatic error detection. | ||
| High speed,big memory CPU capacity on board for easily modify chain program and pattern | ||
| With sewing,turning function,knitting and sewing working together,promote the efficiency and production | ||
| Power Requirement | Drive Motor | 1.35KW |
| Fun Motor | 1..5KW*2 | |
| Control box | 0.8KW | |
| Voltage | 220V/380V/415V | |
| Floor Space | 170X130X250CM | |
| Net/Gross Weight | 350/380KG | |
| Packing Size(LxWxH) ) | 120X110X190CM | |
Socks Knit
Sock Production Line
WHAT KIND OF SERVICE WILL WISDOM PROVIDE?
PACKAGING & SHIPPING
WE USE SOLID WOOD REINFORCED PACKAGING BOXES.WHICH ARE COMPRESSION-RESISTANT AND MOISTURE-PROOF,PROVIDING RELIABLE PROTECTION FOR PRODUCTS DURINGLONG-DISTANCE TRANSPORTATION.
