Wisdom Auto Sock Linking Machine integrates knitting, linking and turning socks in one single unit. It supports both all-in-one production and dedicated sock linking as needed. This series greatly cuts labor demand, simplifies weaving procedures, and significantly shortens product delivery cycles, bringing stable efficiency and cost advantages to sock manufacturing
| Wisdom Auto Sock Linking Machine | ||
| Model | WSD-TSAPT | |
| Cylinder Diameter | 3.75 inch | |
| Needle Number | 108-200N | |
| Max Speed | 330rpm/min | |
| Running Speed | 280-300rpm/min | |
| Function | 1: Making all kinds of plain ,terry ,selected terry and invisible socks | |
| 2: One main feeder(9fingers),6 jacqard feeder(17fingers) | ||
| 3: Double elastic system | ||
| 4： Knitting high heel,left and right foot.180°against sock mouth,two colors sock toe and heel | ||
| Main Features | All mechanical parts are installed in high precision CNC mechancal positioning mode and standardized assembly,which makes the machine working more stably and improve component interchangeability | |
| All electronic valves controlled fingers on main feeder and 17 fingers on 6 jacquard feeders,one loop can have 7 color. | ||
| 7 Sets of 16 flaps high speed actuators assure fine patterning | ||
| Double up and down pickers or fast alternation movements | ||
| Keyboard and touch screen operating platform,UPS backup system for power off protection and automatic error detection. | ||
| High speed,big memory CPU capacity on board for easily modify chain program and pattern | ||
| With sewing,turning function,knitting and sewing working together,promote the efficiency and production | ||
| Power Requirement | Drive Motor | 1.35KW |
| Fun Motor | 1..5KW*2 | |
| Control box | 0.8KW | |
| Voltage | 220V/380V/415V | |
| Floor Space | 170X130X250CM | |
| Net/Gross Weight | 350/380KG | |
| Packing Size(LxWxH) ) | 120X110X190CM | |
Equipment introduction：
This machine can knit, link, turn socks in one machine. At the same time can only knit socks with linking. This series of equipment not only reduces the number of workers, but also greatly reduces the weaving process, thus greatly shortening the product delivery cycle.
Knit feature
This machine can produce plain, terry, jacquard, tuck, mesh, double rib fabrics and etc., especially in making multi-color embossed-effect jacquard socks, invisible socks, cartoon socks, elastic slim stockings, business socks, casual socks.
Socks Knit

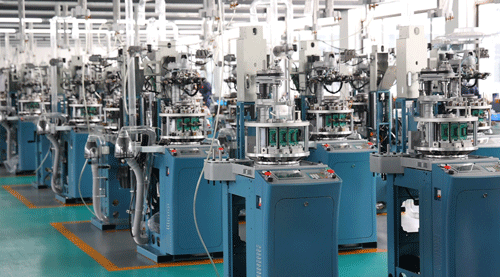

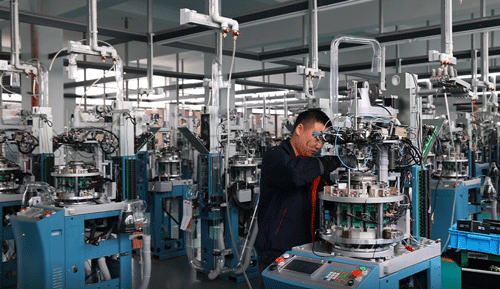

Sock Production Line
WHAT KIND OF SERVICE WILL WISDOM PROVIDE?
PACKAGING & SHIPPING
WE USE SOLID WOOD REINFORCED PACKAGING BOXES.WHICH ARE COMPRESSION-RESISTANT AND MOISTURE-PROOF,PROVIDING RELIABLE PROTECTION FOR PRODUCTS DURINGLONG-DISTANCE TRANSPORTATION.
