Model |

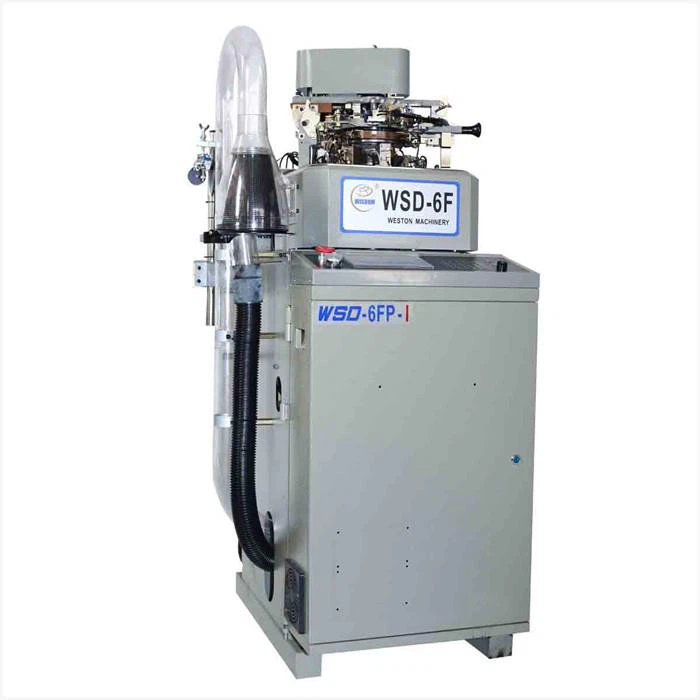

WSD-6FPT-1 |
|
|
Cylinder diameter |
3.5inch/3.75inch/4inch/4.5inch |
|
|
Needle Number |
Terry:72-176N Plain:72-240N |
|
|
Max speed |
Max speed 320rpm/min |
|
|
Running speed |
220 rpm/min |
|
|
Power Requirement |
Driver motor |
0.85 KW |
|
Fun motor |
0.75 KW |
|
|
Control box |
0.80 KW |
|
|
Voltage |
220V/380V/415V |
|
|
Floor space |
150×120×240cm |
|
|
Net/Gross weight |
300/350 KG |
|
|
Packing size(L×W×H) |
110×75×165cm |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
Function introduction
1.One feeder into yarn.
2.Elastic shuttle(can buy two),knit different colors.
3.Six colors in one line, there are 13 colors in the socks pattern.
4.High heel, big heel, small heel, 180 degree against sock mouth, two colors for sock heels, socks toes, can knit 3D socks.
5.Taking the double shovel-needle technology, when knitting the heel and toe, the angle is adjusted by computer. in this way, can improve the efficiency, overcome the shortcoming of sidle shovel needle.
6.According to customer's needs, special kind of machines can be ordered.
