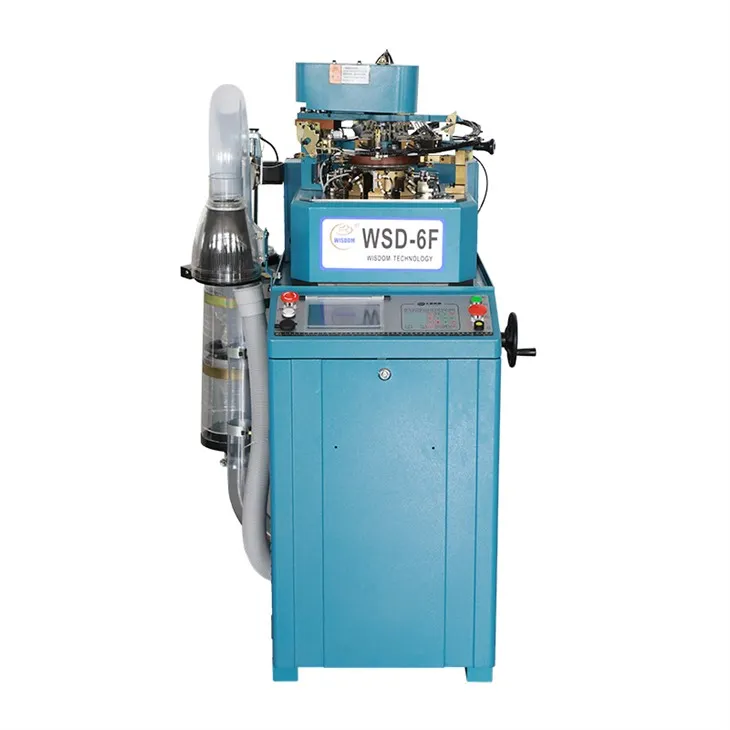

Single Cylinder Plain Socks Knitting Machine

Product Introduction:

A single needle cylinder is filled with a row of carefully crafted needles, usually latch needles. These needles are the "workhorses" of the knitting process, moving up and down within the grooves of the needle cylinder. The latch mechanism on each needle plays a vital role. As the needle rises, the latch opens, thereby grabbing the yarn. As the needle descends, the latch closes, securing the yarn and forming the loop. This continuous up-and-down movement, coordinated in a circular motion around the needle cylinder, creates the fabric of the sock. The number of needles will vary depending on the model and the desired sock size and texture.

Send Inquiry

Description

Technical Parameters

Knitting cycle start

Load the appropriate yarn into the yarn feeder, and the operator sets the needle type (mainly flat needle), sock length, yarn tension and other parameters before starting the machine. The rotation of the drum drives the knitting needle up and down. When it rises, the needle tongue opens to hook the yarn, and when it descends, the needle tongue closes to form a coil, and the coils are interlocked one by one to form the sock body fabric.

Sock body structure forming
Sock opening knitting: First knit the sock opening, and the elastic cuff or decorative ribbed patterns can be set by program.
Sock extension: Adjust the length of the sock according to needs, from short to long below the knee.
Heel forming: When approaching the heel, the knitting needle retracts and releases the needle to form an arc-shaped comfortable heel structure.

Model		WSD-6FP
Cylinder diameter		3.5 inch / 3.75 inch / 4 inch / 4.5inch
Needle Number		72-220N
Max speed		350rpm/min
Running speed		250 - 320 rpm/min
Function		1. Can choose one color or double elastic
		2. 6 color in 1 line, total 13 color in one sock
		3. Can knit high heel , left and right foot 180 degree against sock month, two colors sock heads and heel
		4. Can knit 3D stereo socks
		5. The maximum horizontal stroke pulls is 39cm
		6.Can select the socks of varicose veins connected rubber fully
		7. Can make all kinds of plain socks
Power Requirement	Driver motor	0.85 KW
	Fun motor	0.75 KW
	Control box	0.80 KW
Voltage		220V/380V/415V
Floor space		150×120×240cm
Net/Gross weight		300/350 KG
Packing size(L×W×H)		110×75×165cm

Industrial and Work Socks

Industrial and work socks have specific requirements in terms of durability and functionality. The Single Cylinder Plain Socks Knitting Machine can be used to produce these types of socks. By using strong, abrasion - resistant yarns, the machine can create socks that can withstand the rigors of industrial work environments. These socks often have features such as reinforced heels and toes to provide extra protection against wear and tear.
