Wisdom single cylinder 3.5" intelligent all-in-one sock making machine integrates high-efficiency knitting, stable operation and intelligent control in one body. It features compact structure, fine stitches and strong adaptability, suitable for producing various daily and lightweight socks. With intelligent operation system, it effectively lowers labor intensity, simplifies production process and improves production stability, helping sock manufacturers achieve efficient and cost-effective mass production.
Core Features and Parameters - What You Are Most Interested in
| Model | WSD-TSAPT | |
| Cylinder Diameter | 3.5 - 3.75 inch | |
| Needle Number | 108-200N | |
| Max Speed | 350rpm/min | |
| Running Speed | 280-300rpm/min | |
| Function | 1: Making all kinds of plain socks ,invisible socks | |
| 2: One main feeder(9fingers),6 jacqard feeder(17fingers) | ||
| 3: Double elastic system | ||
| 4： Knitting high heel, left and right foot.180° against sock mouth,two colors sock toe and heel | ||
| Main Features | All mechanical parts are installed in high precision CNC mechanical positioning mode and standardized assembly,which makes the machine working more stably and improve component interchangeability | |
| All electronic valves controlled fingers on main feeder and 17 fingers on 6 jacquard feeders,one loop can have 7 color. | ||
| 7 Sets of 16 flaps high speed actuators assure fine patterning | ||
| Double up and down pickers or fast alternation movements | ||
| Keyboard and touch screen operating platform,UPS backup system for power off protection and automatic error detection. | ||
| High speed,big memory CPU capacity on board for easily modify chain program and pattern | ||
| With sewing,turning function,knitting and sewing working together,promote the efficiency and production | ||
| Power Requirement | Drive Motor | 1.35KW |
| Fun Motor | 1..5KW*2 | |
| Control box | 0.8KW | |
| Voltage | 220V/380V/415V | |
| Floor Space | 170X130X250CM | |
| Net/Gross Weight | 350/380KG | |
| Packing Size(LxWxH) ) | 120X110X190CM | |
Advantages
Multi-Functionality: Suitable for a wide range of sock types, from invisible socks to business socks, offering versatility to meet different production needs.
High Production Efficiency: The machine's high output capacity ensures efficient sock production.
Stability: The machine's stable operation minimizes issues like yarn tangling, dropped stitches, and thread breakage.
Technological Innovation: Utilizes proprietary technologies to overcome traditional machine limitations.
Automation Features: The inclusion of an invisible sock-making function streamlines the production process and boosts efficiency.

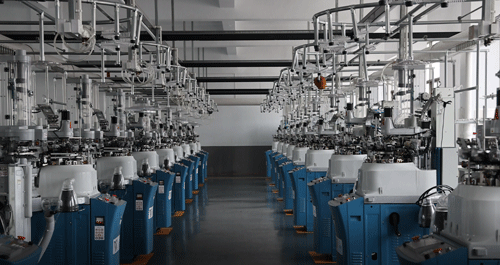

PRODUCTION LINE
SOCK LENGTH
A REAL SOCK MACHINE MANUFACTURER
Zhejiang Wisdom Technology Co., Ltd. is a specialized manufacture of producing socks machine,it has advanced equipment,professional team,and supplies best after-sale service.By now,the company has developped many kinds of sock machine model,such as plain sock machine,terry sock machine ,selected terry sock machine,two feeder sock machine,and also a new model with multiplicate function,knitting-sewing-turning,an intelligent sock machine,which is popular in the market.The company can produce ten thousands of machine each year,and exported to India, Turkey, Thailand, Iran, Egypt and other countries and regions.
The company adheres "Survive with high quality,develop with varieties and grow up with clients"to meet capricious market.And welcome people all over the world to give guidance,create prosperity!
Hot Tags: single cylinder 3.5''sock making machine, China, manufacturers, suppliers, factory, customized, price, high quality
