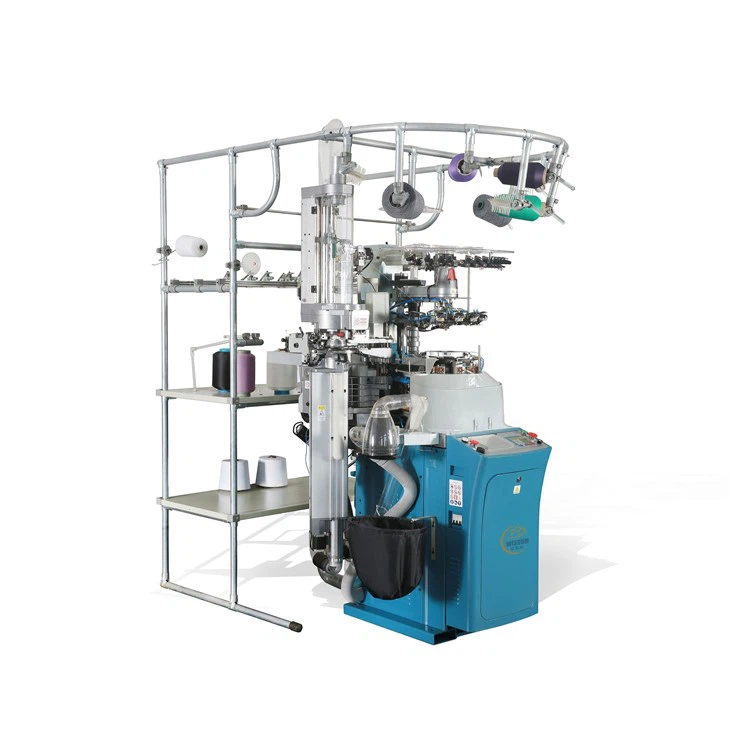

This commercial sock knitting machine combines knitting, sewing, and sewing in one machine. It features a 3.75-inch diameter needle cylinder and a needle gauge range of 108-200N. A maximum speed of 330 rpm and an operating speed of 280-300 rpm ensure efficient production.
Functionally, it can make various plain, terry, selected terry, and invisible socks. Equipped with one main feeder (9 fingers) and 6 jacquard feeders (17 fingers), along with a double elastic system, it enables knitting high - heel left and right feet at 180° against the sock mouth, as well as two - color sock toes and heels.
All mechanical parts are positioned via high - precision CNC mechanical mode and assembled in a standardized way, enhancing stability and component interchangeability. Electronic valves control 9 fingers on the main feeder and 17 fingers on 6 jacquard feeders, allowing one loop to have 7 colors. Seven sets of 16 flaps high - speed actuators ensure fine patterning, and double up - and - down pickers enable fast alternation movements.
The machine has a keyboard and touch - screen operating platform, a UPS backup system for power - off protection and automatic error detection, and a high - speed, large - memory CPU on board for easy modification of chain programs and patterns. With integrated sewing and turning functions, knitting and sewing work together to boost efficiency.
For power, it requires a 1.35KW drive motor, two 1.5KW fan motors, and a 0.8KW control box, with voltage options of 220V/380V/415V. It takes up 170×130×250CM of floor space, has a net/gross weight of 350/380KG, and comes in a packing size of 120×110×190CM.
Product Advantages
- High Precision & Stability: High-precision CNC positioning and standardized assembly ensure stable operation and strong component interchangeability.
- Multi-Function Knitting: Supports a variety of knitting techniques, including flat knit, terry, invisible socks, double-stretch systems, and two-color heels and toes.
- Fast & Efficient: A maximum speed of 330 rpm ensures rapid production and significantly improves efficiency.
- Smart Control: Fully computerized control supports complex pattern knitting and program modification, with built-in UPS power protection and error detection.
- Durability & Reliability: Key components are made of high-quality materials, ensuring long machine life and low maintenance costs.
| FULL COMPUTERIZED SOCK MACHINE KNITTING -SEWING -TURNING ALL IN ONE MAKING PLAIN,SELECTED TERRY INVISIBLE SOCK | ||
| Model | WSD-TSAPT | |
| Cylinder Diameter | 3.75 inch | |
| Needle Number | 108-200N | |
| Max Speed | 330rpm/min | |
| Running Speed | 280-300rpm/min | |
| Function | 1: Making all kinds of plain ,terry ,selected terry and invisible socks | |
| 2: One main feeder(9fingers),6 jacqard feeder(17fingers) | ||
| 3: Double elastic system | ||
| 4： Knitting high heel,left and right foot.180°against sock mouth,two colors sock toe and heel | ||
| Main Features | All mechanical parts are installed in high precision CNC mechancal positioning mode and standardized assembly,which makes the machine working more stably and improve component interchangeability | |
| All electronic valves controlled fingers on main feeder and 17 fingers on 6 jacquard feeders,one loop can have 7 color. | ||
| 7 Sets of 16 flaps high speed actuators assure fine patterning | ||
| Double up and down pickers or fast alternation movements | ||
| Keyboard and touch screen operating platform,UPS backup system for power off protection and automatic error detection. | ||
| High speed,big memory CPU capacity on board for easily modify chain program and pattern | ||
| With sewing,turning function,knitting and sewing working together,promote the efficiency and production | ||
| Power Requirement | Drive Motor | 1.35KW |
| Fun Motor | 1..5KW*2 | |
| Control box | 0.8KW | |
| Voltage | 220V/380V/415V | |
| Floor Space | 170X130X250CM | |
| Net/Gross Weight | 350/380KG | |
| Packing Size(LxWxH) ) | 120X110X190CM | |
Professional sock machine manufacturer
ZHEJIANG WISDOM TECHNOLOGY CO., LTD specializes in hosiery knitting equipment manufacturing, boasting over 30 years of industry experience and over 30,000 square meters of modern production facilities. The company pioneered the development of fully computerized hosiery knitting machines in China, and its products are exported worldwide. Its product line, exemplified by the Commercial Sock Knitting Machine, incorporates intelligent operation, energy-saving design, and a high degree of automation, enabling customers to achieve high-quality, efficient production. With its stable performance and excellent value for money, Wisdom has become a trusted partner for international hosiery manufacturers.
one-stop solution
professional team
high quality
FAQ
Does the operator need a professional background?
No, proficiency is achieved after a short training session. The programming and debugging interface is simple and intuitive, making it suitable for most factory workers.
How is its environmental performance?
The machine uses an energy-saving motor and a design that optimizes yarn utilization, reducing energy waste and raw material loss, meeting environmentally friendly production requirements.
Is the machine compatible with different yarns?
Yes, it is compatible with a variety of yarns, including cotton, polyester, nylon, wool, and functional fibers, to meet different market needs.
